gridpack::powerflow::PFAppModule Class Reference

#include <pf_app_module.hpp>

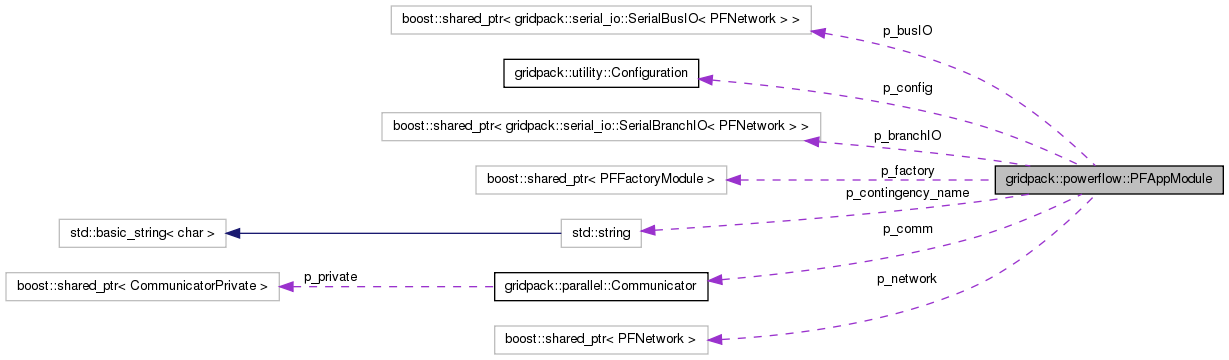

Collaboration diagram for gridpack::powerflow::PFAppModule:

[legend]

List of all members.

Public Member Functions
	PFAppModule (void)
	~PFAppModule (void)
void	readNetwork (boost::shared_ptr< PFNetwork > &network, gridpack::utility::Configuration *config)
void	initialize ()
void	reload ()
bool	solve ()
bool	nl_solve ()
void	write ()
void	writeBus (const char *signal)
void	writeBranch (const char *signal)
void	writeCABus ()
void	writeCABranch ()
void	writeHeader (const char *msg)
std::vector< std::string >	writeBusString (const char *signal=NULL)
std::vector< std::string >	writeBranchString (const char *signal=NULL)
void	open (const char *filename)
void	close ()
void	print (const char *buf)
void	saveData ()
void	exportPSSE33 (std::string &filename)
bool	setContingency (Contingency &event)
bool	unSetContingency (Contingency &event)
void	setVoltageLimits (double Vmin, double Vmax)
bool	checkVoltageViolations ()
bool	checkVoltageViolations (int area)
void	ignoreVoltageViolations ()
void	clearVoltageViolations ()
bool	checkLineOverloadViolations ()
bool	checkLineOverloadViolations (int area)
bool	checkLineOverloadViolations (std::vector< int > &bus1, std::vector< int > &bus2, std::vector< std::string > &tags, std::vector< bool > &violations)
void	ignoreLineOverloadViolations ()
void	clearLineOverloadViolations ()
bool	checkQlimViolations ()
bool	checkQlimViolations (int area)
void	clearQlimViolations ()
void	resetVoltages ()
void	scaleGeneratorRealPower (double scale, int area, int zone)
void	scaleLoadPower (double scale, int area, int zone)
double	getTotalLoadRealPower (int area, int zone)
void	getGeneratorMargins (int area, int zone, double *total, double *pmin, double *pmax)
void	resetPower ()
void	writeRTPRDiagnostics (int src_area, int src_zone, int load_area, int load_zone, double gen_scale, double load_scale, const char *file)
std::vector< std::string >	getContingencyFailures ()
void	useRateB (bool flag)

---

Constructor & Destructor Documentation

gridpack::powerflow::PFAppModule::PFAppModule

(

void

)

Basic constructor

gridpack::powerflow::PFAppModule::~PFAppModule

(

void

)

Basic destructor

---

Member Function Documentation

bool gridpack::powerflow::PFAppModule::checkLineOverloadViolations	(	std::vector< int > &	bus1,
		std::vector< int > &	bus2,
		std::vector< std::string > &	tags,
		std::vector< bool > &	violations
	)

bool gridpack::powerflow::PFAppModule::checkLineOverloadViolations

(

int

area

)

bool gridpack::powerflow::PFAppModule::checkLineOverloadViolations

(

)

Check to see if there are any line overload violations in the network. The last call checks for overloads on specific lines.

Parameters:

	area	only check for violations in specified area
	bus1	original index of "from" bus for branch
	bus2	original index of "to" bus for branch
	tags	line IDs for individual lines
	violations	true if violation detected on branch, false otherwise

Returns:

true if no violations found

bool gridpack::powerflow::PFAppModule::checkQlimViolations

(

int

area

)

bool gridpack::powerflow::PFAppModule::checkQlimViolations

(

)

Check to see if there are any Q limit violations in the network

Parameters:

area

only check for violations in specified area

Returns:

true if no violations found

bool gridpack::powerflow::PFAppModule::checkVoltageViolations

(

int

area

)

bool gridpack::powerflow::PFAppModule::checkVoltageViolations

(

)

Check to see if there are any voltage violations in the network.

Parameters:

area

only check for violations in specified area

Returns:

true if no violations found

void gridpack::powerflow::PFAppModule::clearLineOverloadViolations

(

)

Clear "ignore" parameter on all lines

void gridpack::powerflow::PFAppModule::clearQlimViolations

(

)

Clear changes that were made for Q limit violations and reset system to its original state

void gridpack::powerflow::PFAppModule::clearVoltageViolations

(

)

Clear "ignore" parameter on all buses

void gridpack::powerflow::PFAppModule::close

(

)

void gridpack::powerflow::PFAppModule::exportPSSE33

(

std::string &

filename

)

Export final configuration to PSS/E formatted file

Parameters:

filename

name of file to store network configuration

std::vector<std::string> gridpack::powerflow::PFAppModule::getContingencyFailures

(

)

Get strings documenting contingency failures. Strings are *not* terminated with a carriage return

void gridpack::powerflow::PFAppModule::getGeneratorMargins	(	int	area,
		int	zone,
		double *	total,
		double *	pmin,
		double *	pmax
	)

Return the current real power generation and the maximum and minimum total power generation for all generators in the zone. If zone is less than 1 then return values for all generators in the area

Parameters:

	area	index of area
	zone	index of zone
	total	total real power generation
	pmin	minimum allowable real power generation
	pmax	maximum available real power generation

double gridpack::powerflow::PFAppModule::getTotalLoadRealPower	(	int	area,
		int	zone
	)

Return the total real power load for all loads in the zone. If zone less than 1, then return the total load real power for the area

Parameters:

	area	index of area
	zone	index of zone

Returns:

total load

void gridpack::powerflow::PFAppModule::ignoreLineOverloadViolations

(

)

Set "ignore" paramter on all lines with violations so that subsequent checks are not counted as violations

void gridpack::powerflow::PFAppModule::ignoreVoltageViolations

(

)

Set "ignore" parameter on all buses with violations so that subsequent checks are not counted as violations

void gridpack::powerflow::PFAppModule::initialize

(

)

Set up exchange buffers and other internal parameters and initialize network components using data from data collection

bool gridpack::powerflow::PFAppModule::nl_solve

(

)

Execute the iterative solve portion of the application using a library non-linear solver

Returns:

false if an error was caught in the solution algorithm

void gridpack::powerflow::PFAppModule::open

(

const char *

filename

)

Redirect output from standard out

Parameters:

filename

name of file to write results to

void gridpack::powerflow::PFAppModule::print

(

const char *

buf

)

Print string. This can be used to direct output to the file opened using the open command

Parameters:

buf

string to be printed

void gridpack::powerflow::PFAppModule::readNetwork	(	boost::shared_ptr< PFNetwork > &	network,
		gridpack::utility::Configuration *	config
	)

Read in and partition the powerflow network. The input file is read directly from the Powerflow block in the configuration file so no external file names or parameters need to be passed to this routine

Parameters:

	network	pointer to a PFNetwork object. This should not have any buses or branches defined on it.
	config	point to open configuration file

void gridpack::powerflow::PFAppModule::reload

(

)

Reinitialize calculation from data collections

void gridpack::powerflow::PFAppModule::resetPower

(

)

Reset power of loads and generators to original values

void gridpack::powerflow::PFAppModule::resetVoltages

(

)

Reset voltages to values in network configuration file

void gridpack::powerflow::PFAppModule::saveData

(

)

Save results of powerflow calculation to data collection objects

void gridpack::powerflow::PFAppModule::scaleGeneratorRealPower	(	double	scale,
		int	area,
		int	zone
	)

Scale generator real power. If zone less than 1 then scale all generators in the area.

Parameters:

	scale	factor to scale real power generation
	area	index of area for scaling generation
	zone	index of zone for scaling generation

void gridpack::powerflow::PFAppModule::scaleLoadPower	(	double	scale,
		int	area,
		int	zone
	)

Scale load power. If zone less than 1 then scale all loads in the area.

Parameters:

	scale	factor to scale load real power
	area	index of area for scaling load
	zone	index of zone for scaling load

bool gridpack::powerflow::PFAppModule::setContingency

(

Contingency &

event

)

Set a contingency

Parameters:

event

data describing location and type of contingency

Returns:

false if location of contingency is not found in network

void gridpack::powerflow::PFAppModule::setVoltageLimits	(	double	Vmin,
		double	Vmax
	)

Set voltage limits on all buses

Parameters:

	Vmin	lower bound on voltages
	Vmax	upper bound on voltages

bool gridpack::powerflow::PFAppModule::solve

(

)

Execute the iterative solve portion of the application using a hand-coded Newton-Raphson solver

Returns:

false if an error was caught in the solution algorithm

bool gridpack::powerflow::PFAppModule::unSetContingency

(

Contingency &

event

)

Return system to the state before the contingency

Parameters:

event

data describing location and type of contingency

Returns:

false if location of contingency is not found in network

void gridpack::powerflow::PFAppModule::useRateB

(

bool

flag

)

User rate B parameter for line overload violations

Parameters:

flag

if true, use RATEB parameter

void gridpack::powerflow::PFAppModule::write

(

)

Write out results of powerflow calculation to standard output Separate calls for writing only data from buses or branches

Parameters:

signal

tell underlying write what records to print

void gridpack::powerflow::PFAppModule::writeBranch

(

const char *

signal

)

std::vector<std::string> gridpack::powerflow::PFAppModule::writeBranchString

(

const char *

signal = NULL

)

void gridpack::powerflow::PFAppModule::writeBus

(

const char *

signal

)

std::vector<std::string> gridpack::powerflow::PFAppModule::writeBusString

(

const char *

signal = NULL

)

void gridpack::powerflow::PFAppModule::writeCABranch

(

)

void gridpack::powerflow::PFAppModule::writeCABus

(

)

void gridpack::powerflow::PFAppModule::writeHeader

(

const char *

msg

)

void gridpack::powerflow::PFAppModule::writeRTPRDiagnostics	(	int	src_area,
		int	src_zone,
		int	load_area,
		int	load_zone,
		double	gen_scale,
		double	load_scale,
		const char *	file
	)

Write real time path rating diagnostics

Parameters:

	src_area	generation area
	src_zone	generation zone
	load_area	load area
	load_zone	load zone
	gen_scale	scale factor for generation
	load_scale	scale factor for loads
	file	name of file containing diagnostics

---

The documentation for this class was generated from the following file:

• pf_app_module.hpp
